Menu Navigation

Time/Date Display

Exiting from the menus displays the time/date screen.



From this screen:

  • To enter the default channel display, rotate the rotary knob at the top of the device.
  • To enter the menu system, press the rotary knob.

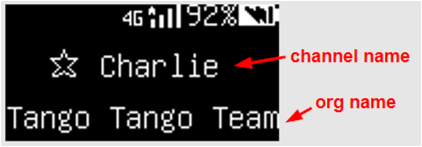

Default Channel Display

When no call is active, the device displays the currently configured default channel.



From this screen:

  • To change the default channel, rotate the rotary knob.
  • To show the time/date display, press the rotary knob.

Call Screen

When a call is started while viewing the default channel display, the call screen will be displayed.



From this screen:

  • To change the default channel and enter the default channel screen, rotate the rotary knob.
  • To enter the menu system, press the rotary knob.

Settings Menus

The settings menus provide the ability to view and change settings for PTT operation and the SD7 device itself. Most menu items contain sub-menus. To enter the displayed item’s sub-menus, press the rotary knob. To advance to the next menu item, rotate the rotary knob.

The settings menus consists of the following items.

  • Device name - displays “Siyata SD7”
  • PTT - exits the menus and sets the display to the default channel screen
  • Channels- settings for each PTT channel
    • Each channel is displayed. Rotate the knob to advance the channel list. Press the rotary knob to enter sub-menus for the channel.
      • Mute - If the channel is muted, no call will be received on the channel.
      • Favorite - Mark the channel as a favorite.
  • PTT Settings- setting for PTT operation
    • Scan mode
    • Scan talkback
    • Do Not Disturb
    • Voice Announcements
      • Channel Change - announce the name of the channel when selected
      • Volume Change - announce the change operation, in the new volume level, when volume is changed
  • Flashlight
  • Network
  • Location
  • Audio
  • Covert Mode
  • System
  • SOS
  • Support
  • About
  • Exit — Exits the settings menus and returns to the time/date display

Most item sub-menus also have the following navigation options:

  • Back - Return to the list of menu items
  • Exit - Return to the time/date display

LED Operation

  • Green - The device has a network connection to the PTT server
  • Blue - The device is in a PTT call
  • Red - The device has taken the floor in a PTT call.

Settings Details

Default Channel

The default channel controls on which channel a new call will be started when the user presses the PTT button. In addition:

  • When scan mode is off:
    • Calls will be received only on the default channel
    • Changing the default channel will cause an ongoing call on the channel to be dropped.
  • When scan mode is on:
    • Calls will received on all un-muted channels
    • Changing the default channel will have no effect on an ongoing call, unless the new default channel also has an ongoing call. In this case, the device will drop the ongoing call on the previous default channel and will enter the call on the new default channel.

Do Not Disturb

When Do Not Disturb is enabled, no calls will be received on the device. However, a new call can still be started on the default channel by pressing the PTT button.

Scan Mode

Scan Mode controls whether the user can receive calls from all un-muted channels (scan mode ON) or receive calls only from the default channel (scan mode OFF). The default setting is scan mode ON.

Scan Talkback

Scan Talkback controls behavior when the user presses the device PTT button during an ongoing call.

  • Scan Talkback ON (default) - The device will attempt to take the floor on the channel of the ongoing call if the user presses PTT.
  • Scan Talkback OFF - If call is ongoing on a channel other than the default channel, pressing PTT will leave the current call and attempt to take the floor on the default channel.

Location

The SD7 can send location updates, if enabled. This will cause the user’s location to be viewable by other users in the organization, via the Tango Tango smartphone app or admin portal. Please contact Tango Tango support to enable this option.
